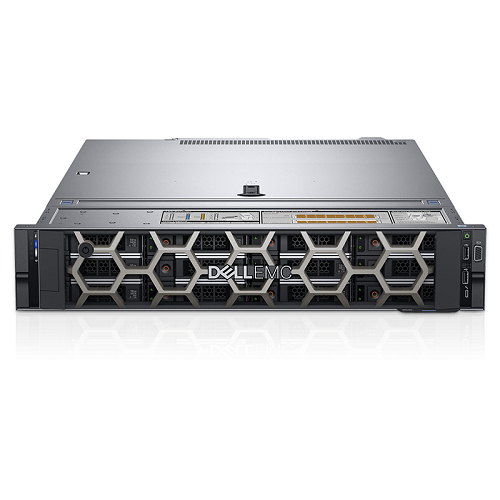

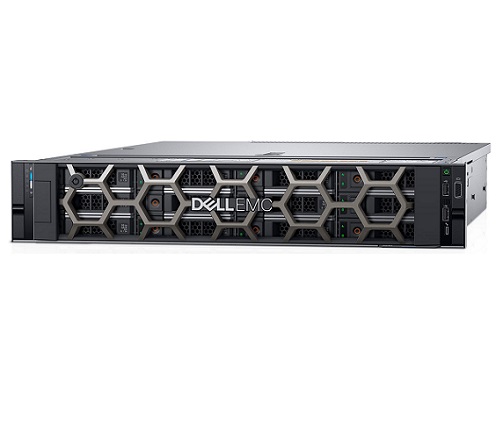

DELL EMC POWEREDGE R540 - 8 X 3.5INCH/ Technical Specification
|
|
Processor
|
Up to two Intel® Xeon® Scalable processors, up
to 20 cores per processor
|
|
Memory
|
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM,
speeds up to 2666MT/s, 512GB max
|
|
Storage controllers
|
Internal controllers: PERC H330, H730p, H740p,
HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
|
|
Drive bays
|
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD
max 120TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD
Optional DVD-ROM, DVD+RW
|
|
Power supplies
|
Titanium 750W, Platinum 495W, 750W, Hot
plug power supplies with full redundancy options and 1100W 240HVDC 750W
|
|
Sizing
|
Form factor: Rack (2U)
Chassis max depth: 707.74 mm (without bezel) Max depth: 693.81 mm (with
bezel)
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
Embedded / At-Server
|
iDRAC9 with Lifecycle Controller iDRAC
REST API with Redfish
iDRAC Direct Quick Sync 2 BLE/wireless module
|
|
Consoles & Mobile
|
OpenManage Enterprise (available soon)
OpenManage Mobile
OpenManage Essentials OpenManage Power Center
|
|
Integrations
|
OpenManage integrations: Microsoft® System
Center, VMware® vCenter™, BMC Software
|
|
Connections
|
Nagios Core and Nagios XI, Oracle Enterprise
Manager, HPE Operations Manager i (OMi)
|
|
Tools
|
Dell EMC Repository Manager iDRAC Service
Module
Dell EMC System Update OpenManage Server Administrator
Dell EMC Server Update Utility OpenManage Storage Services
Dell EMC Update Catalogs
|
|
Security
|
TPM 1.2/2.0 optional Hardware Root of
Trust
Cryptographically signed firmware System Lockdown
Secure Boot System Erase
|
|
I/O & Ports
|
Network daughter card options: 2 x 1GE LOM
(optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE
Front ports: Video, 1 x USB 2.0, available USB 3.0, dedicated IDRAC Direct
USB
Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
With Optional Riser: Non rear storage config: 1xFH/FL + 1xHH/HL (2U Right
riser) slots + 3 HH/HL slots
Rear storage config: 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot
or 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser)
|
|
Supported operating systems
|
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
For specifications and interoperability details see Dell.com/OSsupport.
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi
|
|
OEM-ready version available
|
From bezel to BIOS to packaging, your servers
can look and feel as if they were designed and built by you. For more
information, visit Dell.com/OEM.
|
|
Recommended support and services
|
Choose Dell ProSupport Plus for critical
systems or Dell ProSupport for premium hardware and software support for your
PowerEdge solution. Consulting and deployment offerings are also available.
Contact your Dell representative today for more information. Availability and
terms of Dell Services vary by region. For more information, visit dell.com/itlifecycleservices.
|
|
Dell Financial Services
|
Deliver results with easy financing. Explore
financial options that move at the speed of business. For more information,
visit https://www.dell.com/products/how-to-buy/global-financial-services/index.htm.
|
